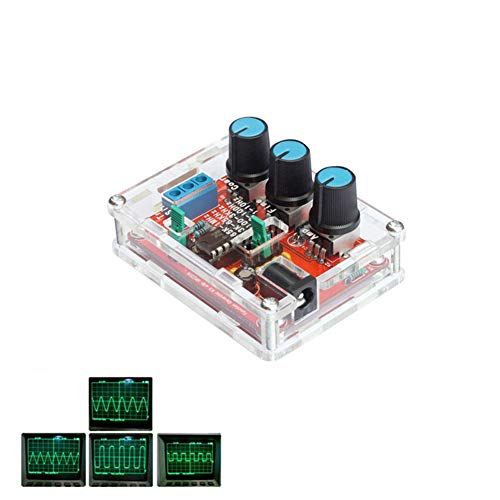

Treedix XR2206 Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency High Precision Function Signal Generator with Acrylic Case
Tax included.
Shipping calculated at checkout.
Features:· This signal generator is a product to generate sine/triangle/square wave, which is also a DIY kit for you to weld and install.· Frequency can be from 1HZ-1MHZ; Adjustable frequency and...
Features:
· This signal generator is a product to generate sine/triangle/square wave, which is also a DIY kit for you to weld and install.
· Frequency can be from 1HZ-1MHZ; Adjustable frequency and amplitude.
· Wide power supply range, you can use an external power supply DC9-12V or 9V battery.
· All straight inserted components, simple installation and debugging.
· Frequency adjustment can be coarse-tuning or fine-tuning.
· This signal generator is a product to generate sine/triangle/square wave, which is also a DIY kit for you to weld and install.
· Frequency can be from 1HZ-1MHZ; Adjustable frequency and amplitude.
· Wide power supply range, you can use an external power supply DC9-12V or 9V battery.
· All straight inserted components, simple installation and debugging.
· Frequency adjustment can be coarse-tuning or fine-tuning.
Specification：
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Package included:

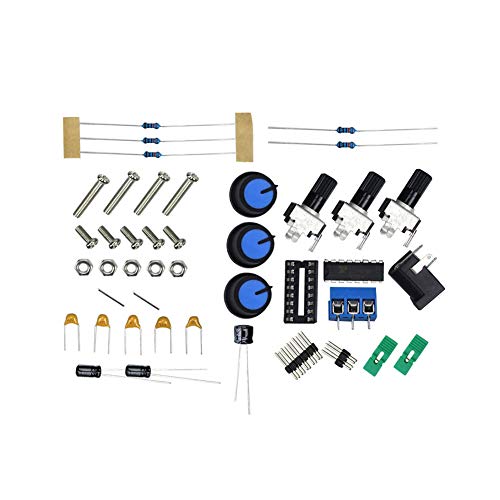

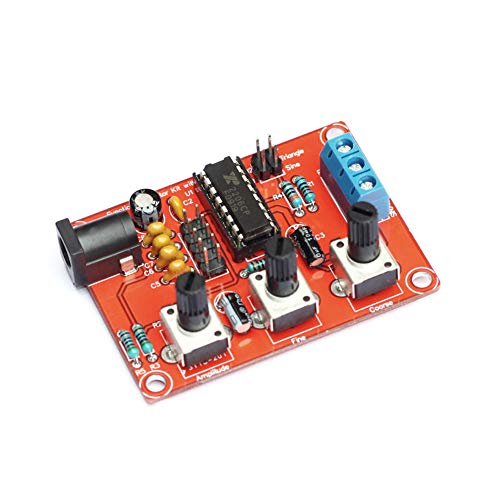

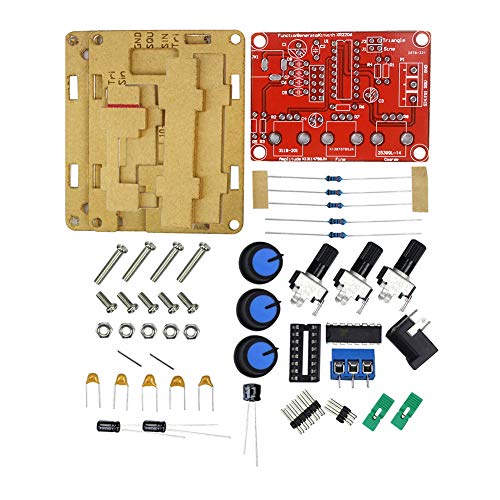

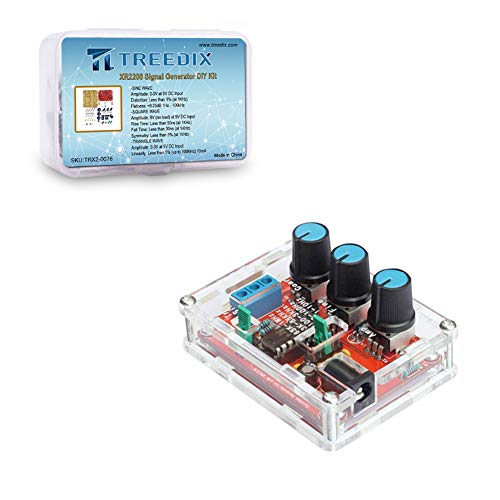

1 x XR2206 Function Signal Generator DIY Kit (Not Assembled)
1 x Instruction
Package Size: 12 x 8 x 2cm / 4.72 x 3.15 x 0.8in
Note: This Kit need to be assembled by yourself. Straight inserted components, simple installation.
