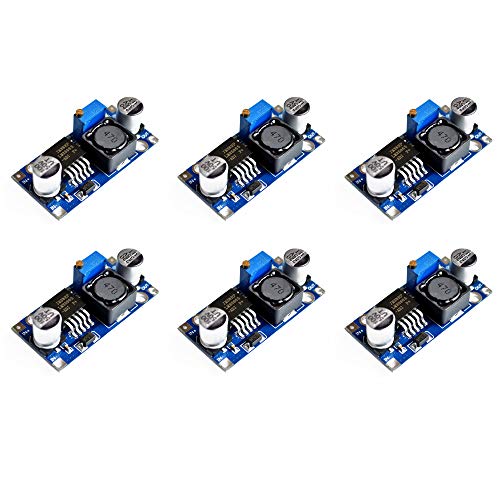

Treedix 6pcs LM2596 DC to DC 3A Buck Step-Down Power Module Supply High Efficiency Voltage Regulator Module
Tax included.
Shipping calculated at checkout.
Features:· Dense small holes, strong heat dissipation capacity, and thick circuit board.· Super strong electromagnetic compatibility, add X7R high-Q high frequency bypass capacitors at the input and output ends respectively.· LM2596S...
Features:
· Dense small holes, strong heat dissipation capacity, and thick circuit board.
· Super strong electromagnetic compatibility, add X7R high-Q high frequency bypass capacitors at the input and output ends respectively.
· LM2596S DC-DC step-down power supply module BUCK 3A adjustable step-down module voltage regulator.
· Input voltage: DC 3.2V to 46V (the input voltage must be 1.5V higher than the output voltage, no boost).
· Output voltage: DC 1.25V to 35V voltage is continuously adjustable, the maximum output current is 3A.
· Dense small holes, strong heat dissipation capacity, and thick circuit board.
· Super strong electromagnetic compatibility, add X7R high-Q high frequency bypass capacitors at the input and output ends respectively.
· LM2596S DC-DC step-down power supply module BUCK 3A adjustable step-down module voltage regulator.
· Input voltage: DC 3.2V to 46V (the input voltage must be 1.5V higher than the output voltage, no boost).
· Output voltage: DC 1.25V to 35V voltage is continuously adjustable, the maximum output current is 3A.
Specification:
Input voltage: 3.2V~46V
Output voltage: 1.25V~35V
Output current: 3A (maximum)
Conversion efficiency: 92%
Output ripple: <30mV
Switching frequency: 65KHz
Working temperature: -45℃~＋85℃
Size: 43mm*21mm*14mm
Wiring port:
IN+ input positive IN- input negative!
OUT+ output positive OUT- output negative
Input voltage range: DC 3.2V to 46V (The input voltage must be higher than the output voltage by more than 1.5V and cannot be boosted)
Output voltage range: DC 1.25V to 35V continuously adjustable voltage, high efficiency (maximum 92%), the maximum output current is 3A.
Measured 12V input, 5V output current 1A load regulation rate is less than 1%
Note:
This is a step-down module, and the input voltage must be higher than the output voltage.
The output below 2A can be used for a long time without the heat sink. If the output current is greater than 2.5A (or the output power is greater than 10W), please use the heat sink for a long time.
Package Included:
6x DC to DC Step-down power module
