Product Description
Features:

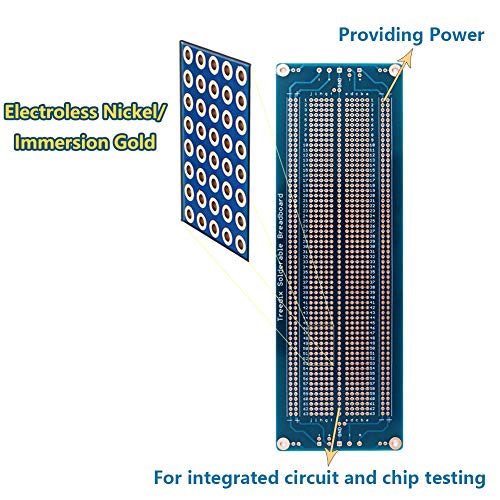

· Electroless Nickel/Immersion Gold technology prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching.
· Used among electronic experiments and point-to-point DIY soldering projects, can be expandable with pin header and female header, designing your own Arduino kits.
· The Breadboard Kit is convenient for the prototypes and circuit design experiment and other DIY projects. Perfect for Arduino, Raspberry Pi, and other programming boards.
· Made of glass fiber FR-4 material, having the ability of high heat resistance, corrosion resistance, mechanical strength, insulation.
· Standard IC spacing 2.54MM hole plated through among the pad, Components and stuff can be mounted variously on your will.
· Electroless Nickel/Immersion Gold technology prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching.
· Used among electronic experiments and point-to-point DIY soldering projects, can be expandable with pin header and female header, designing your own Arduino kits.
· The Breadboard Kit is convenient for the prototypes and circuit design experiment and other DIY projects. Perfect for Arduino, Raspberry Pi, and other programming boards.
· Made of glass fiber FR-4 material, having the ability of high heat resistance, corrosion resistance, mechanical strength, insulation.
· Standard IC spacing 2.54MM hole plated through among the pad, Components and stuff can be mounted variously on your will.
Specification：
- Board Material: Glass Fiber FR4
- Color: Blue, Gold
- Hole pitch: 2.54mm
- Hole diameter: 1mm
- Thickness: 1.5mm

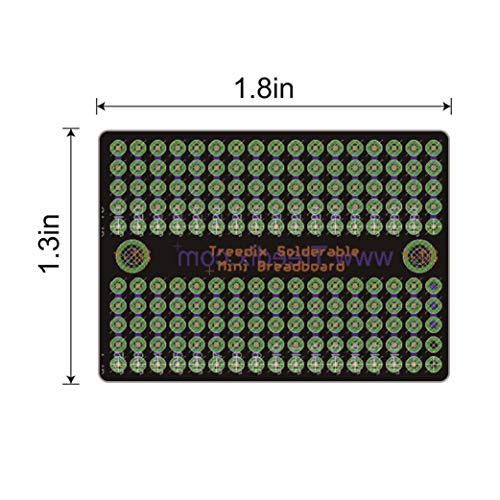

- Size: 1.8 x 1.3 inch
- Extension Clips: Yes (Can extend with other boards)
- Input voltage: 6.5-12V (DC) or USB power supply
- Output voltage: 3.3V/5V (Switchable)
- Maximum output current: <700 mA
- 170 tie points total: 170 tie-point IC-circuit area
- Two roads are of independent control and can be switched to 0V, 3.3V or 5V
Packages Includes:

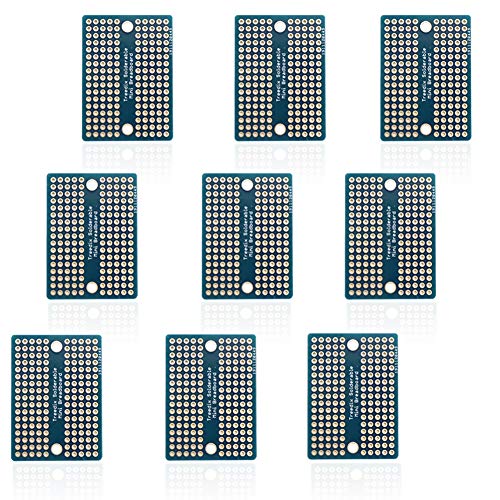

- 9 x 170 tie-points Solderable Breadboard
- Note：Before use, to know that which pin of the components should be connected together,then insert the pin in the group of holes.And so on.

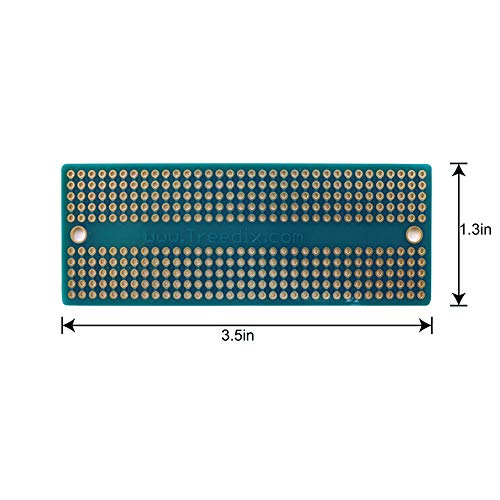

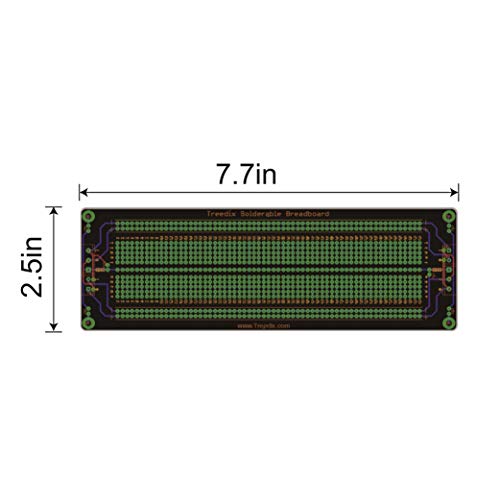

Schematic Diagram
A schematic diagram that shows the PCB layout to let you understand more about the solderable breadboard from our store.
Main features:

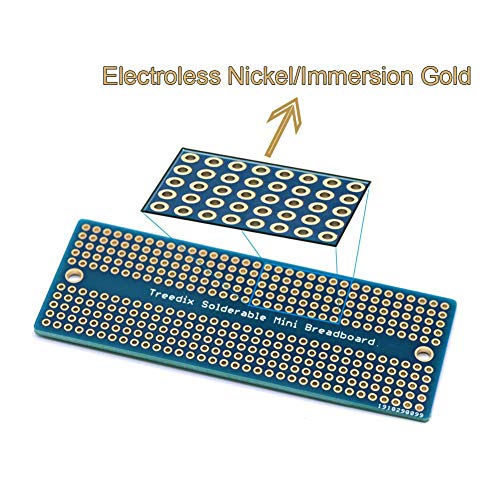

Standard IC spacing 2.54MM hole

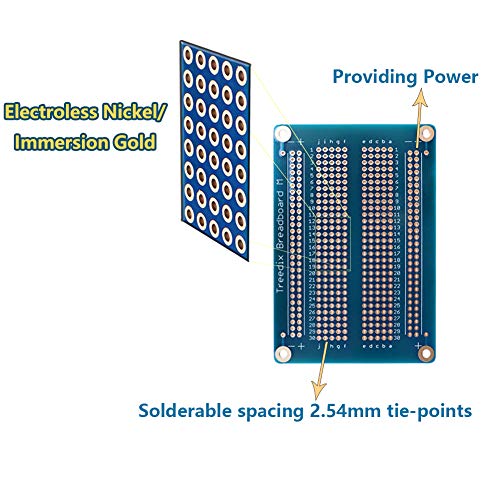

- Standard IC spacing 2.54MM hole plated through among the pad, Components and kits can be mounted variously on your will. Perfectly working with 3mm&5mm LED Diode kit, Electrolytic Capacitor kit, Monolithic Ceramic Capacitor kit, Resistor kit, etc.
Gold finished
- Electroless Nickel Gold finished prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching. To be your friendly companion on your Arduino journey.
Glass fiber FR-4 material
- Made of glass fiber FR-4 material, having the ability of high heat resistance, corrosion resistance, mechanical strength, insulation.
To sum up:
- Gold finished for easier soldering.
- Glass fiber FR-4 material which features high heat resistance, corrosion resistance.
- Standard IC spacing 2.54MM pin hole allow the board to work perfectly with tons of Arduino kits.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Resistor Kit | Electrolytic Capacitor Kit | 3mm&5mm LED Kit | Ceramic Capacitor Kit | Solderable Breadboard | |
| Compatible with 2.54mm pin hole | ✓ | ✓ | ✓ | ✓ | |
| Can be expandable with | ✓ |
