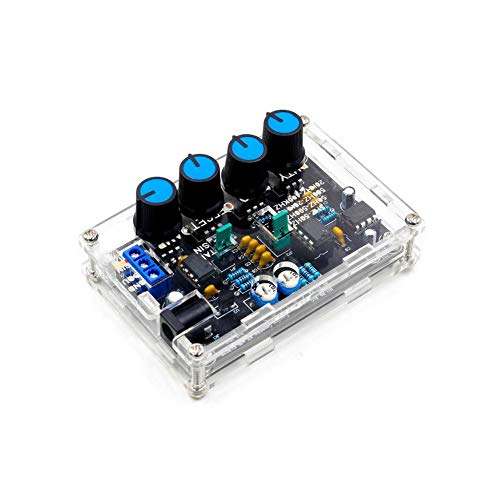

· This signal generator is a product to generate sine/triangle/square wave/Forward and Reverse sawtooth waveform, which is also a DIY kit for you to weld and install.
· Using ICL8038 chip and high-speed operational amplifier, higher accuracy. Supports bi-amp, without blocking capacitors, ensuring high and low frequency signal distortion.
· Adjustable frequency and amplitude. Frequency range: 5Hz ~ 400kHz; Duty Ratio Range：2 ~ 95% (adjustable).
· All straight inserted components, simple installation and debugging.
· Frequency adjustment can be coarse-tuning or fine-tuning.
Power supply voltage: DC12V ~ 15V
Frequency range: 5Hz ~ 400KHz (adjustable)
Duty ratio range: 2 ~ 95% (adjustable)
Low distortion sine wave: 1%
Low temperature drift: 50ppm / ° C
Output triangle wave linearity: 0.1%
DC offset range: -7.5V ~ 7.5V
Output amplitude range: 0.1V ~ 11VPP (working voltage 12V)

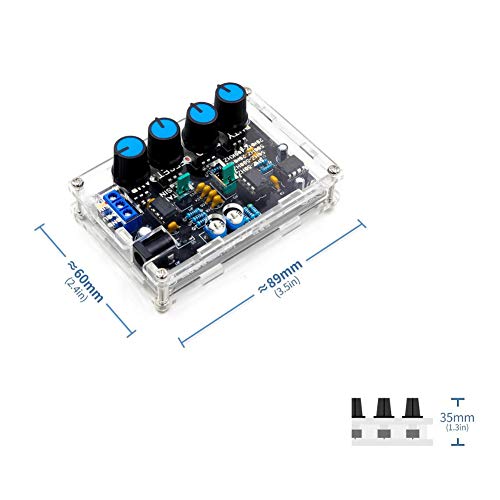

PCB size: 7.8 x 5cm / 3.07 x 1.97in

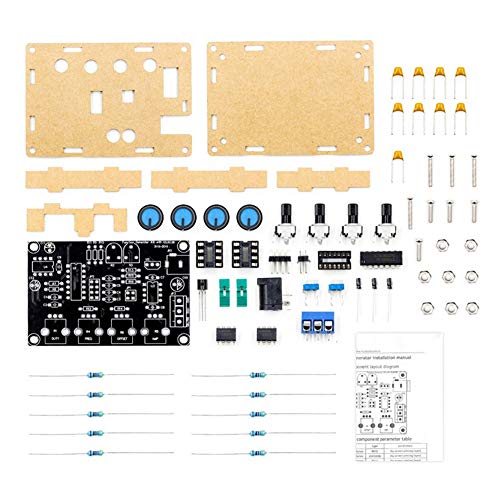

1 x ICL8038 Low-Frequency Signal Generator DIY kit
1 x Instruction
Note: This Kit need to be assembled by yourself. Straight inserted components, simple installation.
